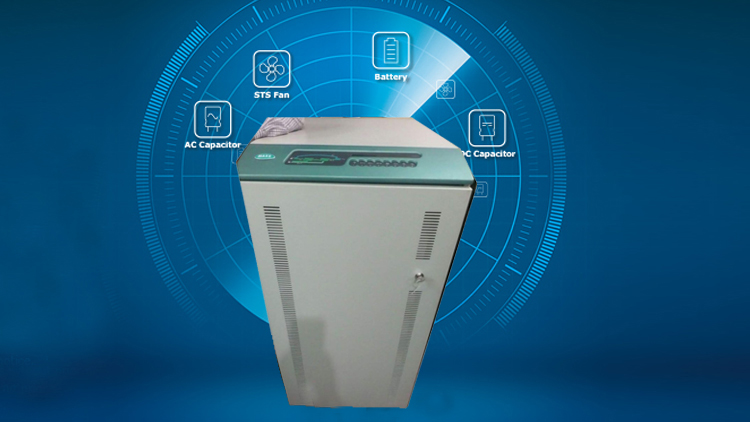

3M3 Series 3340 :- ( 40 kVA 3/3 )


Ranging: 10kVA-40kVA Working mode: Double conversion on-line Application: Data Processing Centre Mainframe System Manufacturing and Telecom Equipment

Records MTBF 200,000h MTTR 0.5 h Large LCD which display load, battery capacity, input & output, multiple languages (English, Russia) Output transformer is optional.

Features :
  • Three-Phase Input,Three-Phase Output,Applicable To 380/ 400/415V,50/60Hz Net
  • Online Double Conversion ,Provide Best Power
  • Fit To All Kinds Of Load,Especially Overload
  • Double DSP Digital Control,Realize IGBT Rectification, Inversion,Charging And Discharging
  • Advanced IGBT Inversion Technology,Input Power Factor Reaches 0.99,Low Harmonic Current,Environment Friendly And Save Energy
  • Digital Circumfluence Technology,High Stability Of Parallel Connection
  • Wide Input Voltage Range, Applied To Environment Of Bad Electricity
  • Intelligent Battery Management,Extend Its Life
  • Automatic Self-Check,Complete Security For Faults,With 50

  Our Products

You Have Questions?

We believe that our expertise will speed up your process.

Contact Us

Download Brochure
Technical Data
Model 3W320K
Output capacity 20kVA
input
Voltage 380VAC 20% (3Ø+N) at normal load
Frequency 45~65Hz
Power factor >0 .95
Output
Voltage 380VAC 1% (3Ø+N)
Seting range 346~415 VAC( On the control panel)
Crest factor 3:1
Wave form Sine wave
Distortion Non linear load THD<5%,resistance load THD<2.5%
Stability voltage at steady state 1%
Stability voltage at transient state 4%
Frequency 50/60Hz The same of input
Frequency stability without synchronization 0.05%
Frequency stability with synchronization Frequency is same as bypass
Overload 110%/125%/150% of rated current for 300/30/3 s
Efficiency AC/AC > 92%
Power factor 0.7 LAG
DC Voltage 192+192VDC (288+288VDC)
Widing different battery combination Transfer time)
AC fault 0 ms
UPS fault < 2 ms
Type STATIC+ manual per maintenance operation
Voltage 380VAC 15%(10%~ 20%) 3Ø+N (on the control panel)
Input frequency range 50/60 2%(1%~ 5%) (on the control panel)
Overload 200% 1 min
Remote signal Dry contacts/remote control panel
Remote command EPO and Bypass
computer interface Standard RS232 x 2
Max operating altitude max.4000m Max operating altitude rated power output at 1000m(reduce 1% of rated power output when the altitude increases every 100m)
Cooling forced venational (fan speed function of load)
Applicable standards Safety EN50091-1, Electromagnetic compellability EMCEN 50091-2 class A
Option Insulation transforms- harmonic suppression filter-parallelism kit up to six units
Temperature 0 ~ 40
Humiity 95% (No condensing)
Noise 56 dB at 1 meter
Weight 110/239/238 kg
Dimension(WxDxH) 505x720x1140 mm
